Joist End Repair Brackets (Bower Beams) – Set of 4 with fixings

Product Description

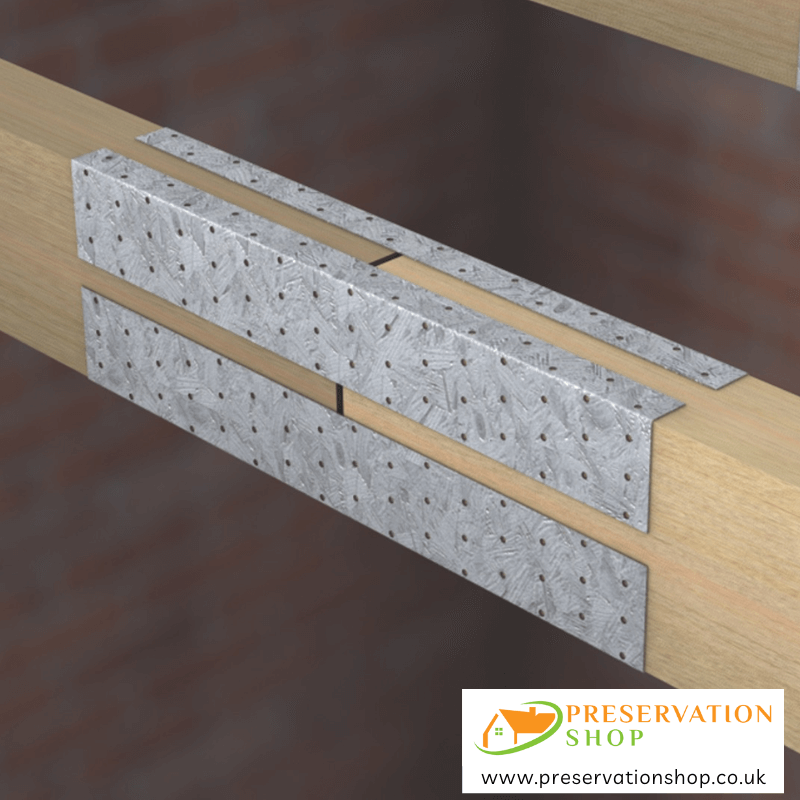

These Joist End Repair Brackets (set of 4) are an economical on-site method of butt jointing timbers of similar section. Suitable for use when replacing rotten floor joist ends caused by wet and dry rot, replacement of fire damaged timbers and repairing localised structural timber damage.

These corner brackets can also be used for creating raised garden beds with timber boards of any thickness or for strengthening corners in general timber construction.

Special Features

• Manufactured from 0.9mm thick steel.
• Must be fixed in sets of 4 per joint, minimum timber thickness 50mm.
• Fix using supplied 30mm x 3.75mm BPC Sheradised square twist nails in all available holes.
• Set of 4 comes with required nails.

Dimensions & Load Data

• Dimensions: L = 550mm, W = 98mm, B = 18mm.
• Holes in plate length = 99 x 4mm.
• Holes in plate bearing surface = 11 x 4mm.
• Characteristic Capacity [kN]: 22
• These properties should be used for design in accordance with EN 1995-1-1:2004/A1 (Eurocode 5) or an
  appropriate national code.
