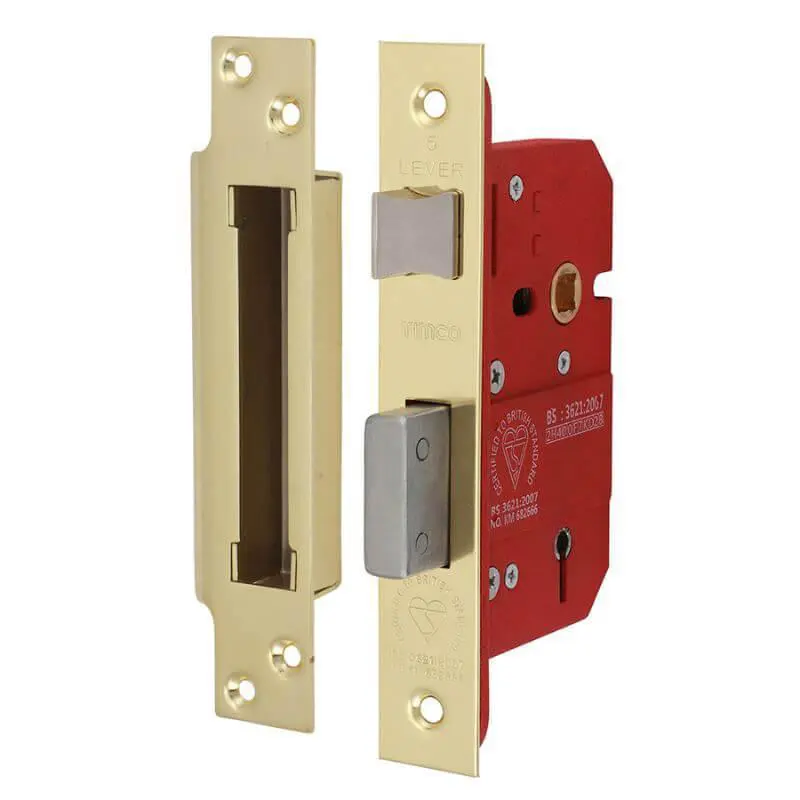

A high security mortice lock for use in interior and exterior doors in commercial and domestic environments. The lock has been rigorously tested to BS 3621:2007 which is a common requirement of building and contents insurance policies. The heavy duty spring mechanism makes this lock ideal for sprung and unsprung door handles.
Special Features
Tested to BS 3621:2007
Anti-drill protection
High security, insurance approved
Easily reversible latch bolt
Tested & certified for 30 & 60 minute fire doors
Supplied with 2 keys
Complete with fixing screws
Specification
66 case / 45 backset
78 case / 57 backset
Approval
BS 3621:2007
BS 3621:2007
Backset (mm)
45
57
Bolt Throw (mm)
20
20
BS EN Classification
3M810G7KD1B
3M810G7KD1B
Carton Qty (packs)
10
10
CE Standard
BS EN 12209:2003
BS EN 12209:2003
Centres (mm)
57
57
Certifire Number
CF5531
CF5531
Corrosion Rating (1-5)
2 – Occasionally damp/wet, rural and sheltered areas
2 – Occasionally damp/wet, rural and sheltered areas
Faceplate Size H x W (mm)
155 x 25
155 x 25
Faceplate Type
Square
Square
Finish
Electro Brass
Electro Brass
Fire Rating
30 & 60 Minutes
30 & 60 Minutes
Included Items
Key (Qty 2)
Key (Qty 2)
Euro Profile Keyhole Escutcheon (Qty 2)
Euro Profile Keyhole Escutcheon (Qty 2)
Escutcheon Keyhole Cover (Qty 1)
Escutcheon Keyhole Cover (Qty 1)
Keep Size H x W (mm)
172 x 30
172 x 30
Keys
2
2
Lock Case Depth
66
78
Lock Case Height
110
110
Lock Case Size H x D (mm)
110 x 66
110 x 78
Lock Case Width
18
18
Lock Follower Backset (mm)
45
57
Material
Steel
Steel
Pack Dimensions L x W x H (mm)
183 x 123 x 35
179 x 123 x 32
Pack Qty
1
1
Pack Weight (kg)
0.806
0.85
Screw Size (imp.)
8 x 1
8 x 1
Screw Size (mm)
4.0 x 25
4.0 x 25
Size (mm)
66 / 45
78 / 57
Additional Information
Weight
N/A
Variant
66mm case / 45mm backset, 78mm case / 57mm backset
