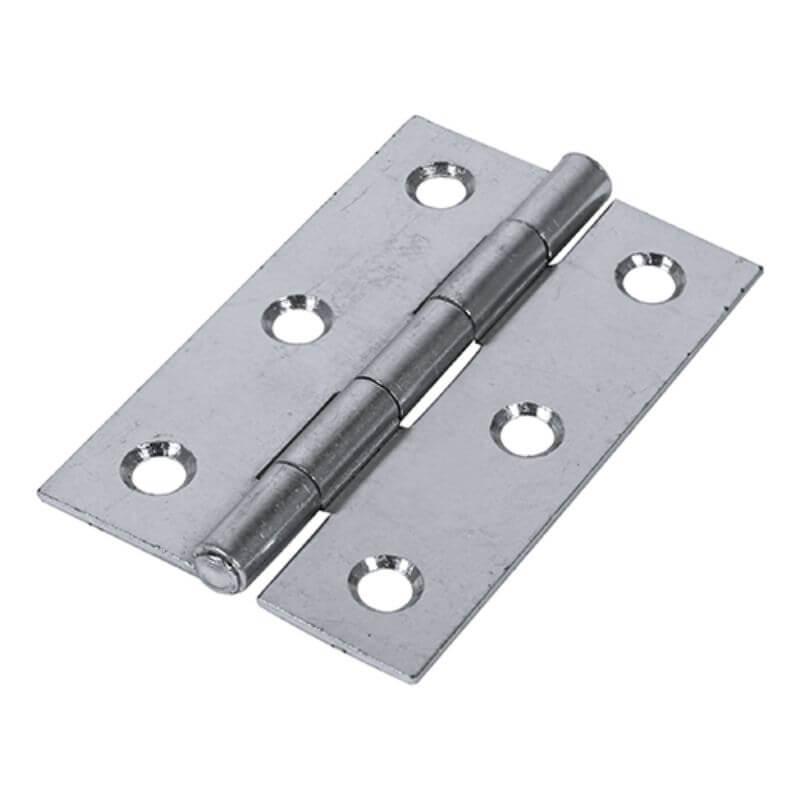

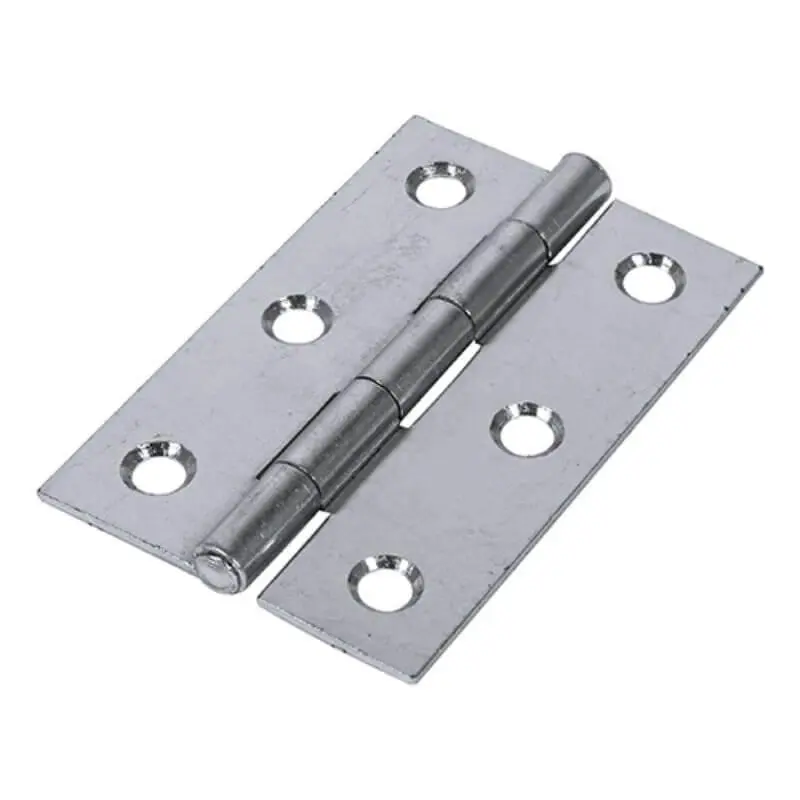

Timco Plain Butt Hinge – Fixed Pin (1838) – Zinc
From £1.40 ex. VAT / £1.68 inc. VAT
Product Description
Product Description
An economy hinge for a variety of uses.
Special Features
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel with a variety of plating finishes
Specification
| 75 x 50 | 100 x 70 | ||
| Corner Type | Square | Corner Type | Square |
| Corrosion Rating (1-5) | 2 – Occasionally damp/wet, rural and sheltered areas | Corrosion Rating (1-5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Finish | Zinc | Finish | Zinc |
| Hole Ø (mm) | 5.7 | Hole Ø (mm) | 6 |
| Knuckle Ø (mm) | 7.3 | Knuckle Ø (mm) | 9.3 |
| Knuckle Type | Plain | Knuckle Type | Plain |
| L (inch) | 3 | L (inch) | 4 |
| L (mm) | 75 | L (mm) | 100 |
| Length x Width (mm) | 75 x 50 | Length x Width (mm) | 100 x 70 |
| Material | Steel | Material | Steel |
| No. of Screws Required per Pair | 12 | No. of Screws Required per Pair | 16 |
| Open Width (mm) | 50 | Open Width (mm) | 70 |
| Pack Dimensions L x W x H (mm) | 195 x 88 x 16 | Pack Dimensions L x W x H (mm) | 237 x 116 x 20 |
| Pack Qty | 1 pair | Pack Qty | 1 pair |
| Pack Weight (kg) | 0.13 | Pack Weight (kg) | 0.29 |
| Pattern | 1838 | Pattern | 1838 |
| Rec. Screw Gauge (imp.) | 8 | Rec. Screw Gauge (imp.) | 9 |
| Rec. Screw Ø (mm) | 4 | Rec. Screw Ø (mm) | 4.5 |
| Thickness (mm) | 1.5 | Thickness (mm) | 1.7 |
Additional Information
| Weight | N/A |
|---|---|
| Variant | 75mm x 50mm, 100mm x 70mm |
