This single sump pump station by National Pump Systems is a black (plastic HDPE) chamber complete with a Clarke Drain HDPE frame and lid. The chamber is 60cm tall x 55cm diameter.
Inside the chamber is a KSB 301 Amadrainer automatic pump (6.5M head – 166 l/sec max), KSB non return valve, 90 deg Elbow, plain union, 1/1/4″ tank connector and 32mm solvent weld waste adaptor plus a length of 32mm 16bar PVC pipe.

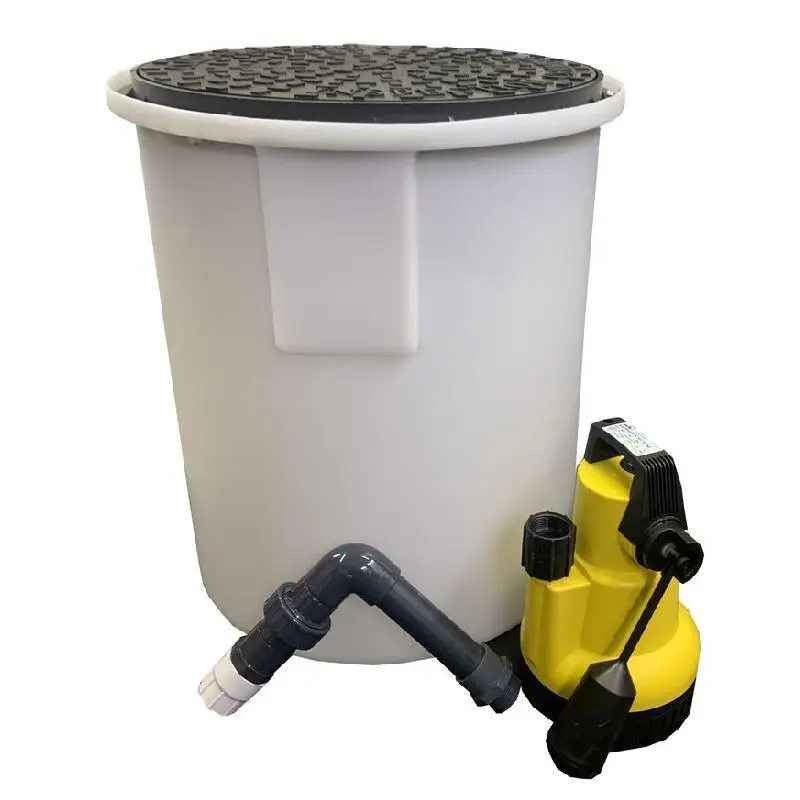

The image on this product shows the final assembled unit. You are expected to carry out the assembly yourself, for this you will need a saw to cut the PVC pipe to length, solvent weld adhesive (high pressure adhesive is recommended), a hole saw to drill through the wall of the chamber to fit the tank connector for the discharge pipe.
- Chamber Diameter: 55mm x 600mm tall
- Chamber volume: 110 litres
