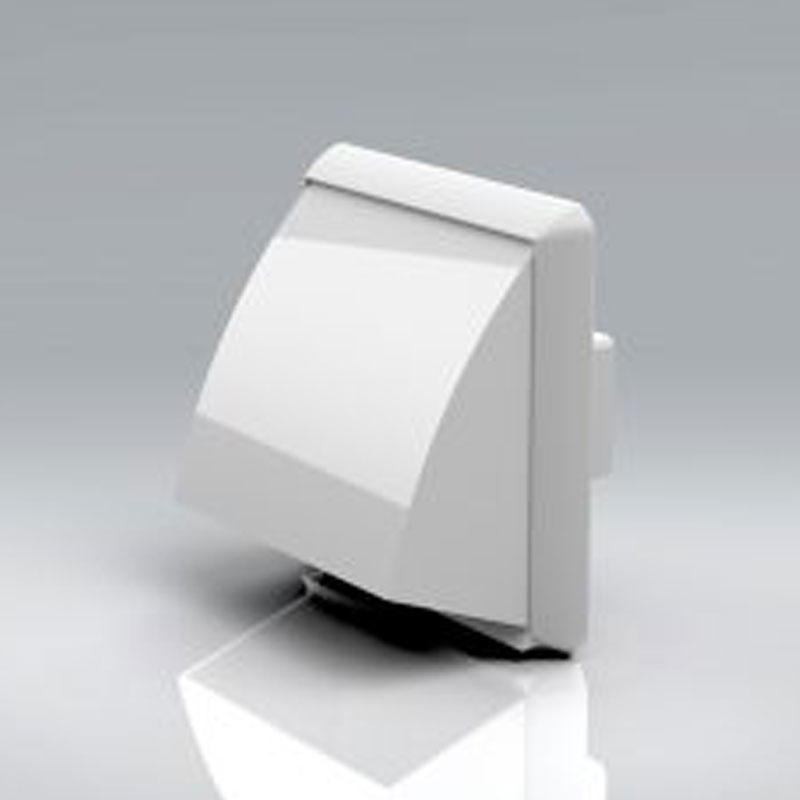

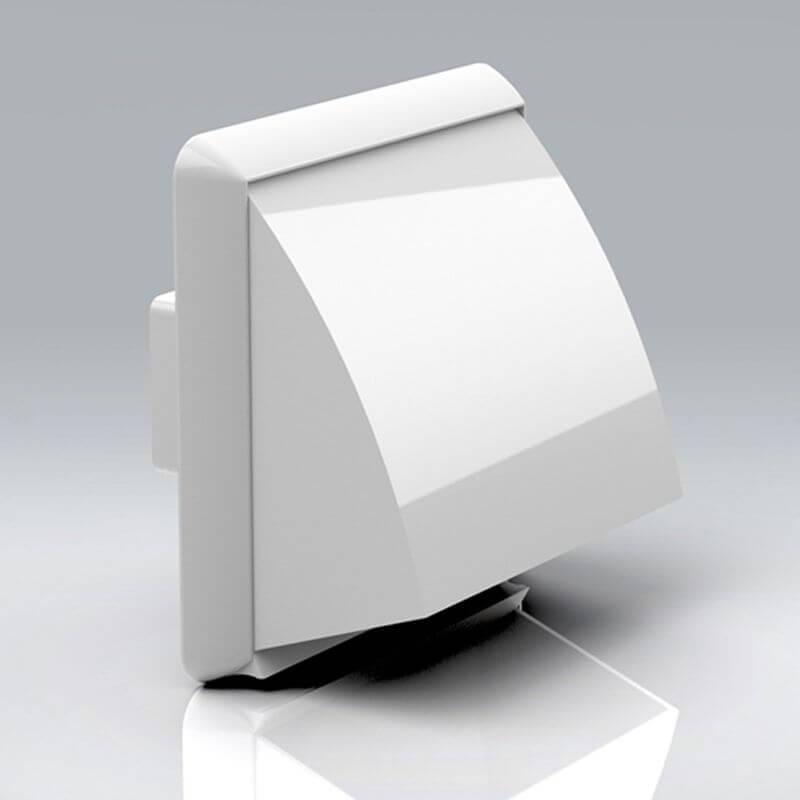

Cowl with Non Return Flap – 110mm X 54mm – White

Product Description

110mm X 54mm Cowl with non return white flap. This product is useful in a range of indoor locations such as kitchens, utilities and bathrooms. The product protects against the ingress of rain and wind.

The VKC232 is designed for installation on exposed external walls where wind or back pressure against the ventilation unit are present. The cowled outlet is designed to shield the duct from the wind and deflect the air away. The non-return flap acts as an additional measure to prevent airflow returning through the duct. As the fan operates the flap lifts to allow the exhaust air to disperse into the atmosphere. VKC232 is designed for exhaust air only.

Special Features

• The VKC232 110x54mm Rectangular Cowled Outlet with Non-Return Flap is manufactured from Polypropylene and has a minimum free area of 5,800mm². It has a male spigot for connection inside of the System 110 duct.
• VKC232 is manufactured in compliance with Domestic Plastic Ductwork Specification DW/154 and does meet UL94HB flammability standard.

Specification

• Size: 110x54mm
• Colour: White-RAL9003
• Material: Polypropylene
