White Powder-Coated Metal Ceiling Air Supply Valve – 100mm

Product Description

This is our 100mm diameter White Powder Coated Adjustable Supply Valve which is a part of The System 100 Round Pipe. The System 100 Round Pipe provides superior airflow performance when compared with the System 100 Rectangular Duct and should always be considered as a first option if space allows. This system is suitable for small extractor fans and low powered cooker hoods and comes with an extensive range of fittings, outlets and grilles.

Special Features

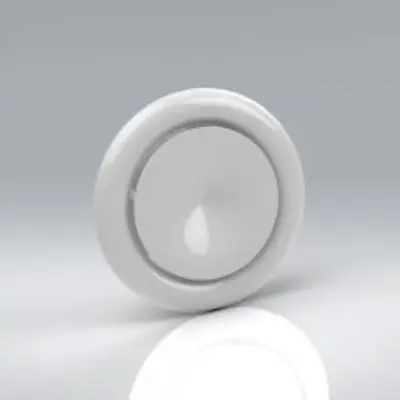

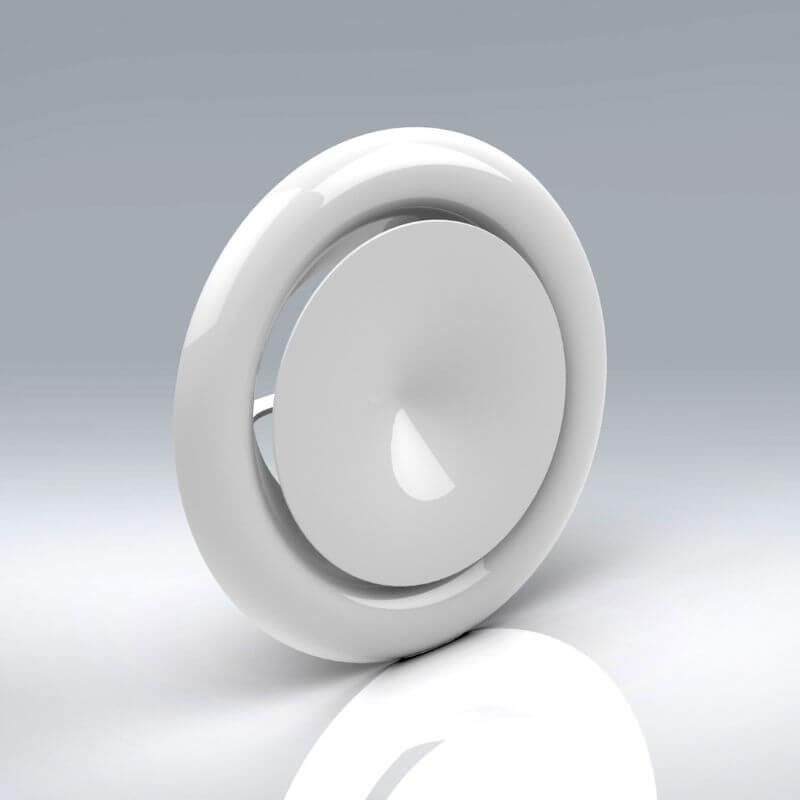

• The MW105 100mm diameter Round White Metal Ceiling Air Supply Valve is manufactured from White Epoxy Powder Coated Steel and has minimum free area of 2,842mm² with Control Disc 10mm open. It has a male spigot for connection inside of the System 100mm duct.
• The MW105 supply air valve is fully adjustable and has a locking nut to fix the position of the control disc upon commissioning
• The MW105 is supplied complete with a fixing body with pre-drilled holes for installation

Specification

• Size: 100mm Diameter
• Colour: White
• Material: White Epoxy Powder Coated Steel
